EBZ Series Centrifugal Compressor

描述

• EBZ series of centrifugal compressors are suitable for the applications of air or high pressure, toxic, flammable and explosive gas transportation in petrochemical industry generally.

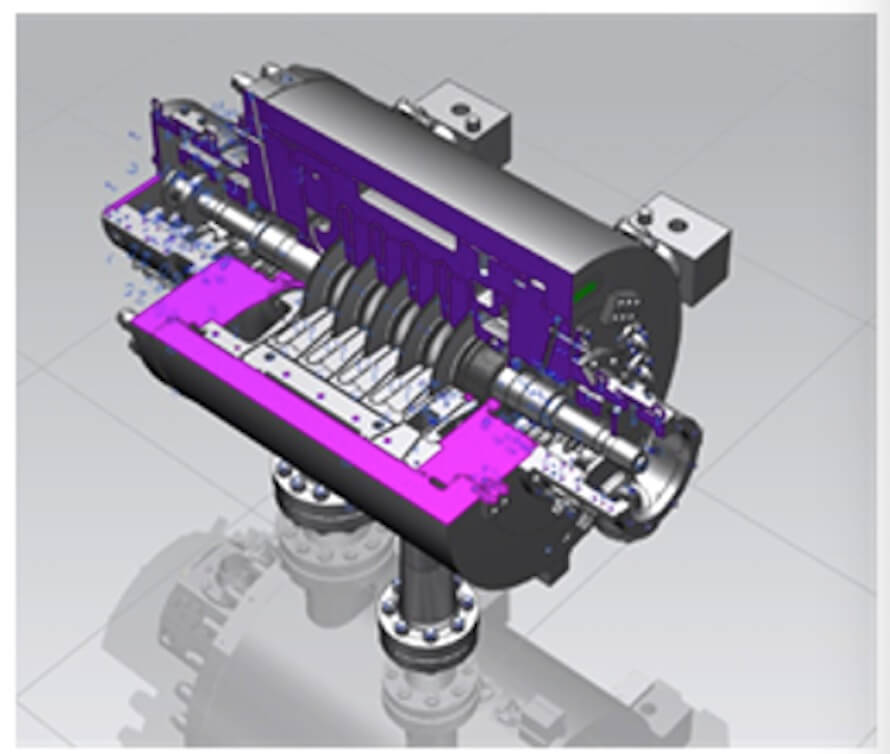

• Structure of the compressor is of integral barrel type, multi-suction, multi-stage, high-speed, double supports and built-in intercooler.
• Models include 7 types.
• Flow range: 10~3000m3/min.
• Exhaust pressure: up to 25MPa.
• Impeller diameter: 250mm~1320mm.
• Stages: 2~9 stages.
• Serialization design, efficient three-dimensional impellers and proper matched model stages realize pressure ratio requirements and high-efficient operation.
• Rotor and inner stator could be pulled out directly for maintenance without removing the pipeline.
• Intake and exhaust air ducts could be flexibly designed according to actual situations.
• Inner cylinder is of horizontal splitting structure for easy maintenance.
• EBZ compressors are designed with mature and reliable modeling stages and advanced pneumatic calculation program, which has reached the international advanced technology level by many fields operation verification.
